11CTB
Inrush-withstand 3216 surface mount fuse with 125 ℃ maximum operating temperature
RoHS-compliant
Pb free
Features
- High breaking capability by heat-resistant and high-strength ceramic body
- Lower resistance compared to similar type fuses by inner structure designing
- Less susceptible to thermal effects during board mounting by elements welded to terminals
- Compliant with automotive ambient temperature requirement by heat resistant adhesive
- Reduced effect of external temperature by inner structure designing
- Prevention of external tension on element by flexible terminals
- Solderless construction
- AEC-Q200(Rev.E)Qualified
Applications
- OA equipment
- Car navigation
- Security equipment
- Portable device
- Surveillance camera
- Automotive infotainment system
- Adapter
- Remote controller
- Battery management system
- Motor driver
- Automotive electronics
- DC secondary circuit

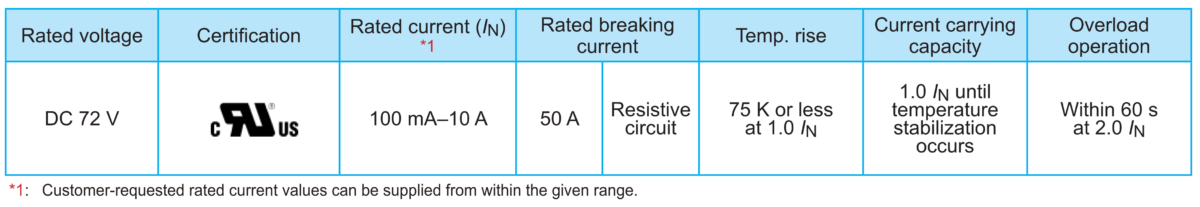

- Characteristic
Inrush-withstand
Representative pre-arcing time-current characteristics
Blueprint / Size
Detailed information
Please contact us if you require specifications outside the scope of those listed above.
