25RF

UL/PSE/SEMKO quick-acting fuse with leads

Features

  • High breaking capability by heat-resistant and high-strength ceramic body
  • Lower resistance compared to similar type fuses by inner structure designing
  • Less susceptible to thermal effects during board mounting by element welded to terminals
  • Reduced effect of external temperature by inner structure designing
  • Quick-acting by wire-in-air construction with less heat radiation effect
  • Solderless construction

Applications

  • DC-DC converter
  • IC tester
  • PLC
  • Actuator
  • Automotive navigation system
  • BMS
  • Motor driver
  • DC secondary circuit
  • ECU
  • OA equipment
  • USB charger
  • Intercom
  • Battery pack
  • Portable device
  • Automotive electronics
  • Multi-function printer
Characteristic

Quick-acting

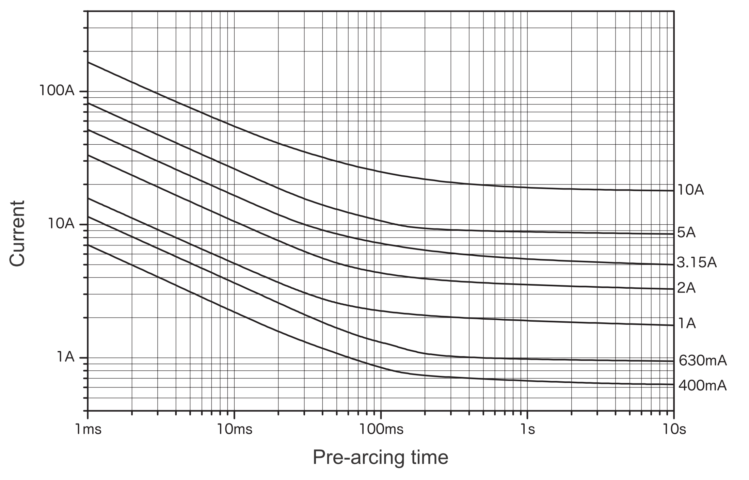

Representative pre-arcing time-current characteristics

Representative pre-arcing time-current characteristics

Blueprint / Size

Blueprint1

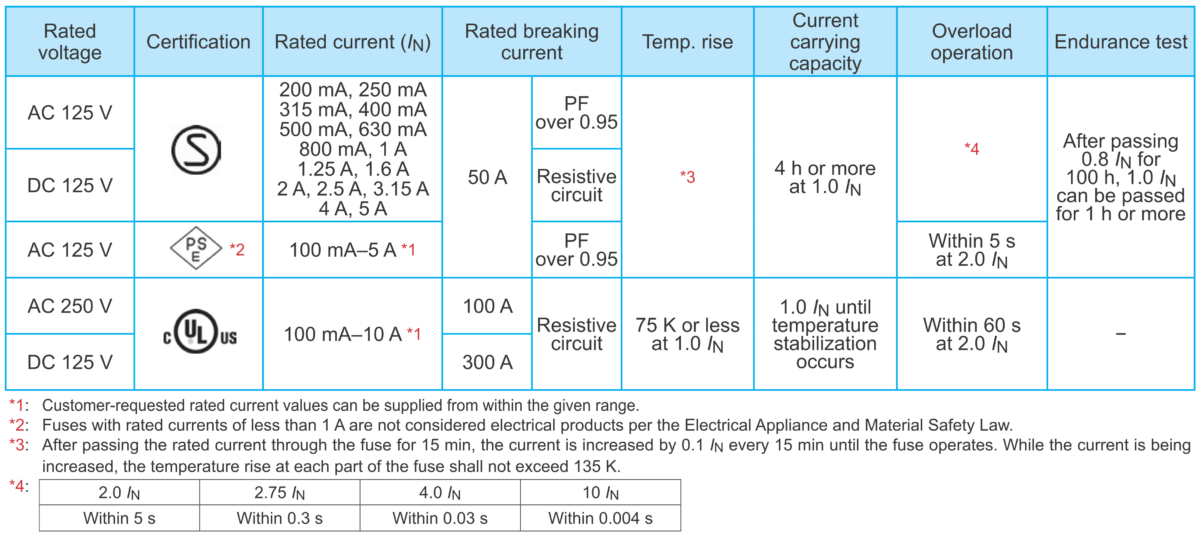

Detailed information

Please contact us if you require specifications outside the scope of those listed above.
