32V11CF
SEMKO/UL 3216 Inrush-withstand surface mount fuse
RoHS-compliant
Pb free
Features
- High breaking capablity by heat-resistant and high-strength ceramic body
- Lower resistance compared to similar type fuses by inner structure designing
- Prevention of external tension on element by flexible terminals
- Solderless construction
- Reduced effect of external temperature by inner structure designing
- Quick-acting by wire-in-air construction with less heat radiation effect
- Less susceptible to thermal effects during board mounting by element welded to terminals
Applications
- OA equipment
- Car navigation
- Security equipment
- Portable device
- Surveillance camera
- Automotive infotainment system
- Adapter
- Remote controller
- Battery management system
- Motor driver
- Automotive electronics
- DC secondary circuit
- Characteristic
Inrush-withstand
Representative pre-arcing time-current characteristics
Blueprint / Size

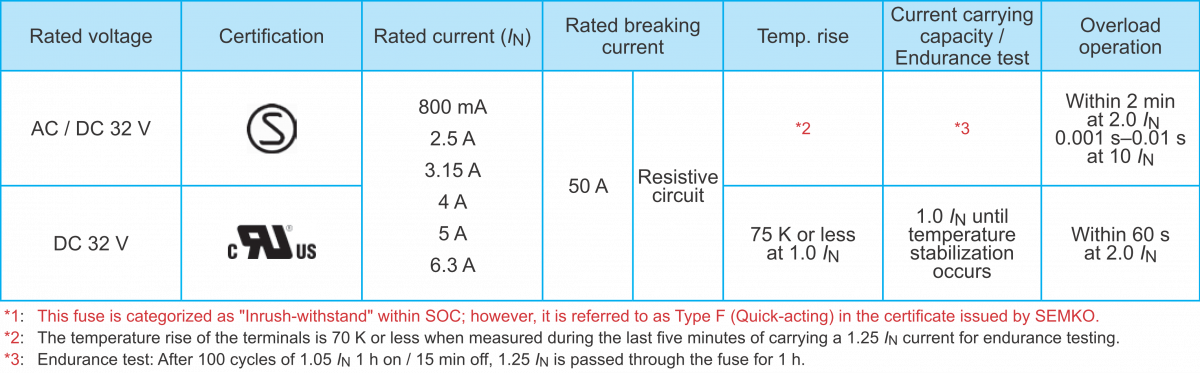

Detailed information
Please contact us if you require specifications outside the scope of those listed above.
