36CT
1,500A breaking capacity surface mount fuse
RoHS-compliant
Pb free
Features
- High breaking capability by heat-resistant and high-strength ceramic body
- Less susceptible to thermal effects during board mounting by element welded to terminals
- AC250V with 1500A breaking capacity in SMD package
- Excellent inrush-withstanding capability and high reliability by wound-wire element
- Solderless construction
- AC250V & DC300V rating in SMD package
Applications
- AC primary circuit
- Smart meter
- Medical equipment
- Power supply
- Gas detector equipment
- Security system
- Automation equipment controller
- Broadcast equipment
- Characteristic
Inrush-withstand

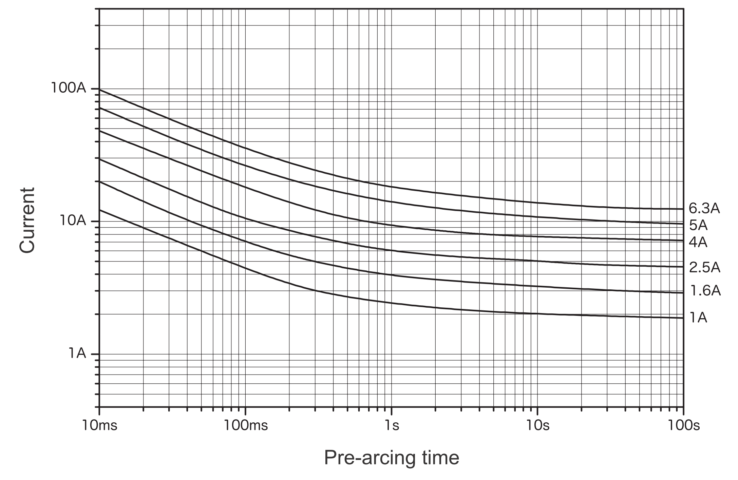

Representative pre-arcing time-current characteristics

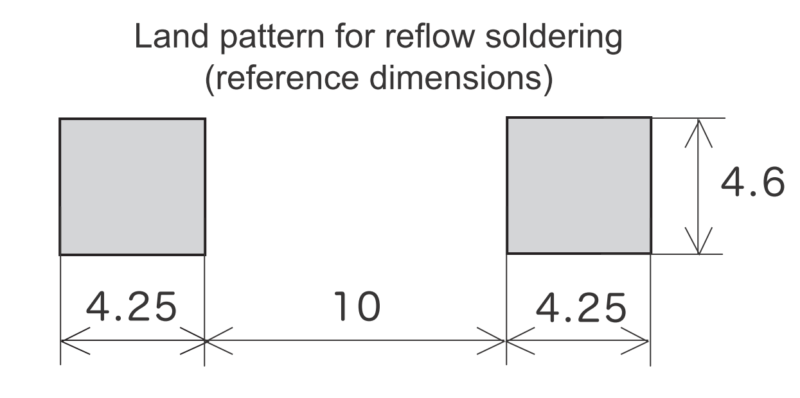

Blueprint / Size
Detailed information
Please contact us if you require specifications outside the scope of those listed above.
