DC35VP25CF

DC35V quick-acting surface mount protector

  • Picture1
Protector RoHS-compliant Pb free

Features

  • High breaking capability by heat-resistant and high-strength ceramic body
  • Lower resistance compared to similar type fuses by inner structure designing
  • Less susceptible to thermal effects during board mounting by element welded to terminals
  • Up to 18A rating in SMD package
  • Reduced effect of external temperature by inner structure designing
  • Quick-acting by wire-in-air construction with less heat radiation effect
  • Solderless construction

Applications

  • E-call system
  • Server
  • Battery pack
  • Portable device
  • Motor controller
  • Industrial programmable controller
  • Deodorizer
  • DC secondary circuit
  • Car navigation
  • Battery charger
  • Battery management system
  • Motor driver
  • Medical equipment
  • Automotive electronics
  • Energy storage system
  • Vortex flow meter
Characteristic

Quick-acting

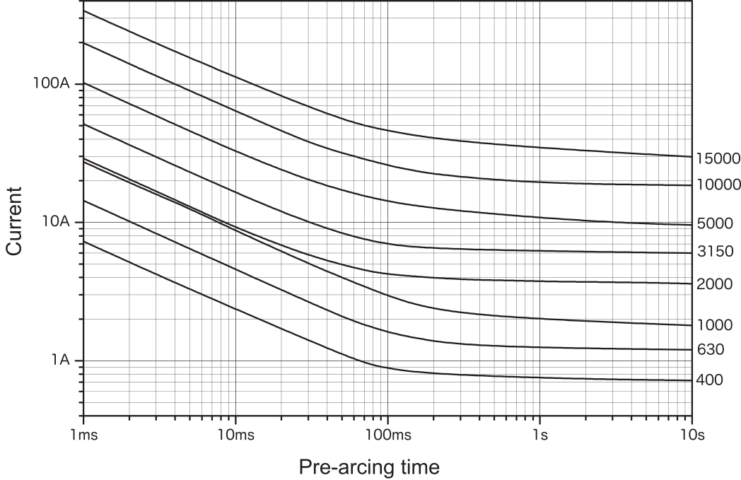

Representative pre-arcing time-current characteristics

Representative pre-arcing time-current characteristics

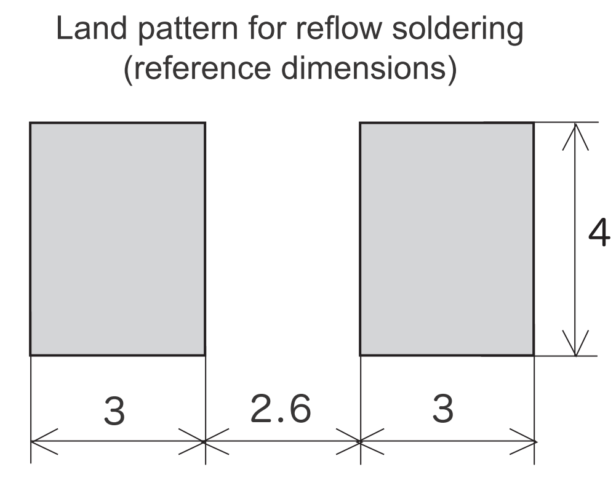

Blueprint / Size

Blueprint1

Blueprint2

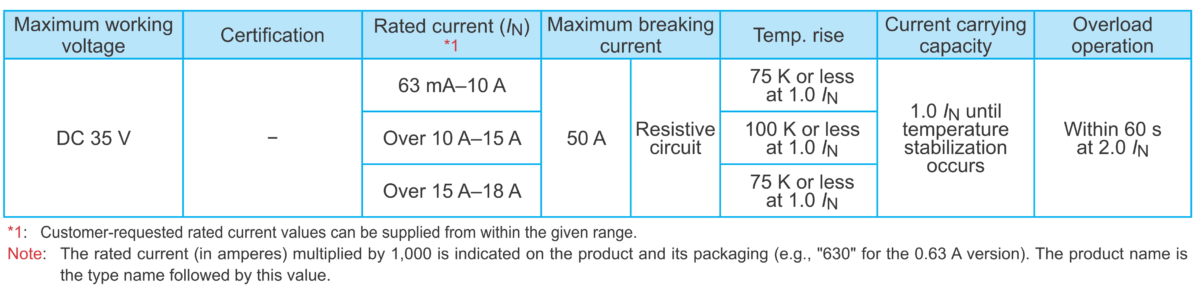

Detailed information

Please contact us if you require specifications outside the scope of those listed above.
