DC35VP25CT
DC35V inrush-withstand surface mount protector
Protector
RoHS-compliant
Pb free
Features
- High breaking capability by heat-resistant and high-strength ceramic body
- Reduced effect of external temperature by inner structure designing
- Less susceptible to thermal effects during board mounting by element welded to terminals
- Excellent inrush-withstanding capability and high reliability by wound-wire element
- Lower resistance compared to similar type fuses by inner structure designing
- Solderless construction
Applications
- E-call system
- Server
- Battery pack
- Portable device
- Motor controller
- Deodorizer
- DC secondary circuit
- Car navigation
- Battery charger
- Battery management system
- Motor driver
- Medical equipment
- Energy storage system
- Vortex flow meter
- Characteristic
Inrush-withstand

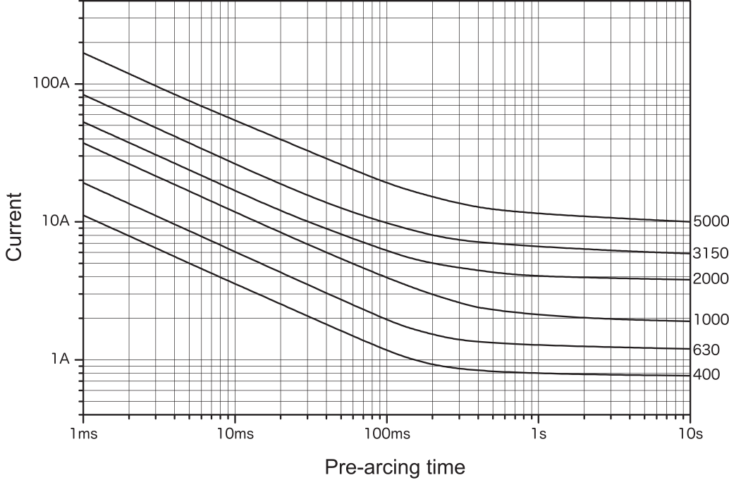

Representative pre-arcing time-current characteristics

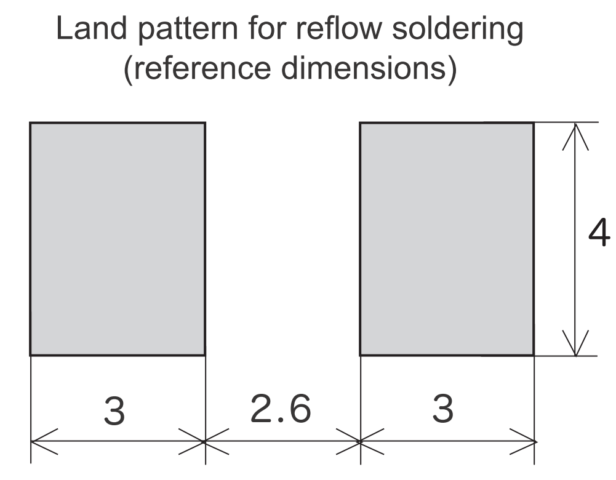

Blueprint / Size
Detailed information
Please contact us if you require specifications outside the scope of those listed above.
