DC500VBC635C

DC500V bolted connection fuse for EV converter/inverter

Features

  • Excellent inrush-withstanding capability and high reliability by wound-wire element
  • High reliability by connecting element and terminals by external soldering
  • High current flow with minimal contact resistance by surely bolted connection
  • RoHS compliant

Applications

  • EV
  • PHEV
  • Servo motor amplifier
  • Automotive DC/DC converter
  • HVAC circuit
  • HEV
  • FCV
  • EV auxiliary application
  • On-board charger

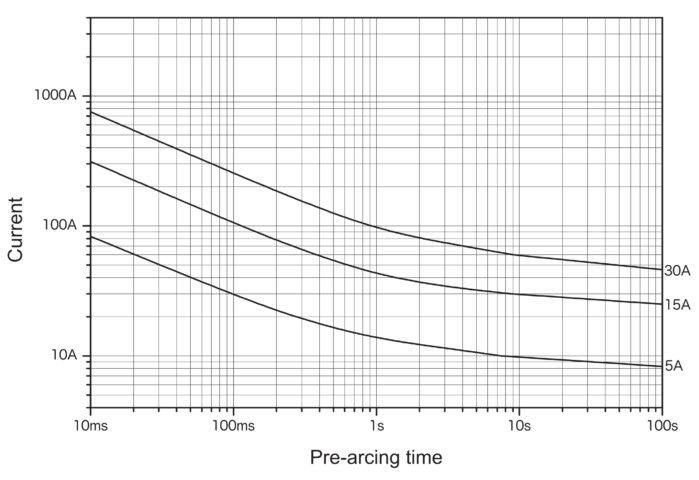

Representative pre-arcing time-current characteristics

Representative pre-arcing time-current characteristics

Blueprint / Size

Blueprint1

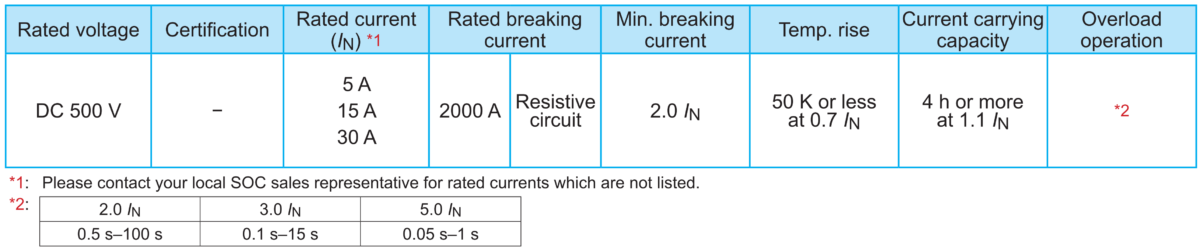

Detailed information

Please contact us if you require specifications outside the scope of those listed above.
