DC72V bolted connection fuse


  • High breaking capability by heat-resistant and high-strength ceramic body
  • High current flow with minimal contact resistance by firmely bolted connection
  • Solderless construction
  • Excellent ON-OFF durability and high reliability by spiral element
  • Less susceptible to thermal effects during board mounting by element welded to terminals


  • EV
  • PHEV
  • DC/DC converter
  • Servo motor amplifier
  • On-board charger
  • HEV
  • FCV
  • Air conditioner
  • Autimotive DC/DC converter
  • Automotive auxiliery equipment

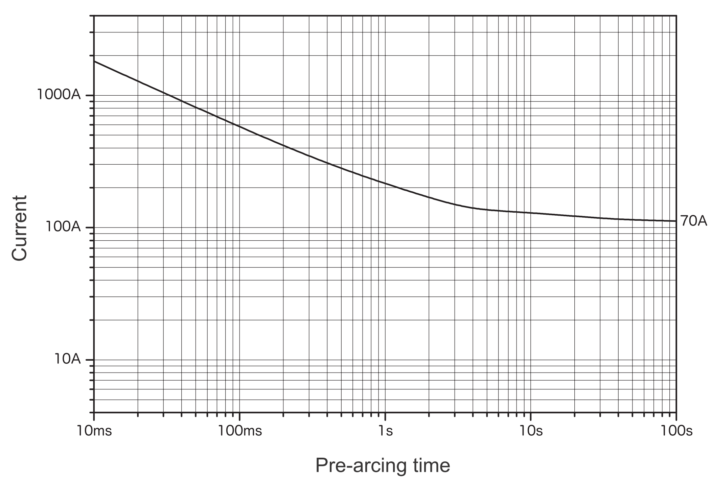

Representative pre-arcing time-current characteristics

Representative pre-arcing time-current characteristics

Blueprint / Size

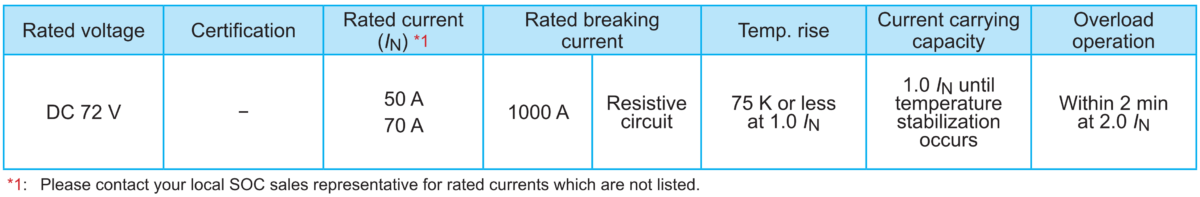

Detailed information

Please contact us if you require specifications outside the scope of those listed above.
