MQ1 N1

UL/CSA/PSE AC125V normal-acting 5.2×20 mm cartridge fuse with leads

  • Picture1
RoHS-compliant*3 Pb free*3
Characteristic

Normal-acting

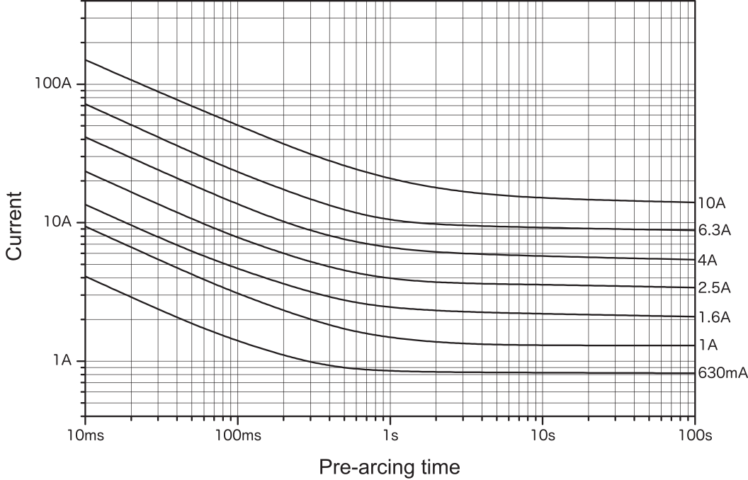

Representative pre-arcing time-current characteristics

Representative pre-arcing time-current characteristics

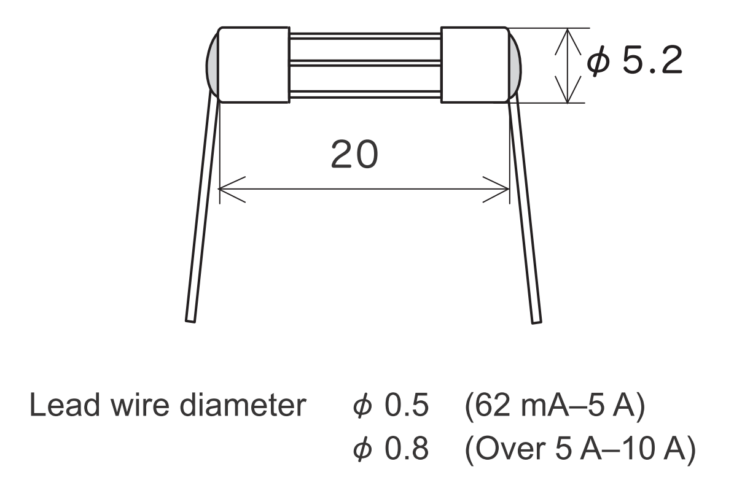

Blueprint / Size

Blueprint1

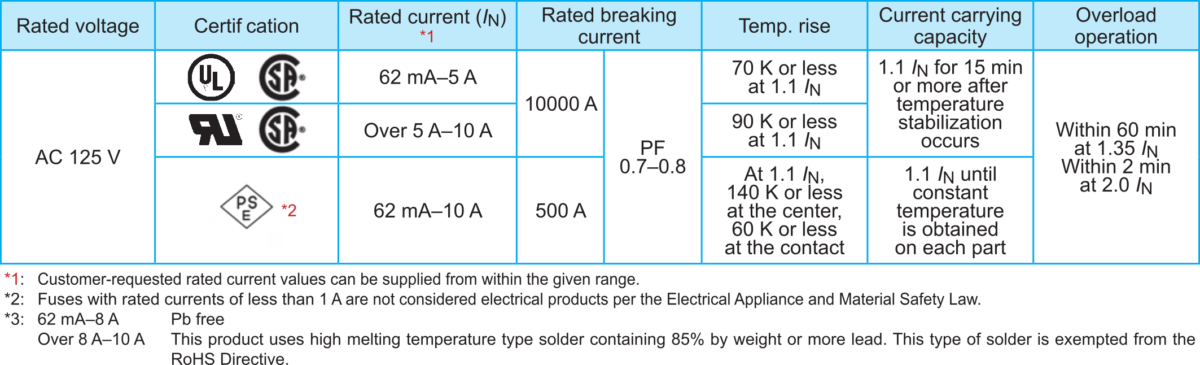

Detailed information

Please contact us if you require specifications outside the scope of those listed above.

Contact
Applications
Consumer power supply
Industrial power supply
