SHV1
UL/CSA/PSE inrush-withstand 5.2×20 mm cartridge fuse for high voltage
RoHS-compliant*2
- Characteristic
Inrush-withstand

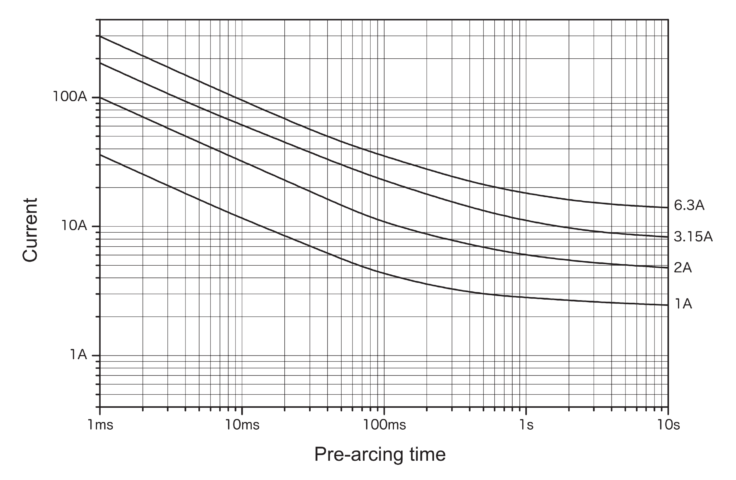

Representative pre-arcing time-current characteristics
Blueprint / Size
Detailed information
Please contact us if you require specifications outside the scope of those listed above.
Contact- Applications
- Industrial power supply
Consumer power supply
Converter
Inverter
