DC35VP11CT

DC35V 3216 inrush-withstand surface mount protector

  • Picture1
Protector RoHS-compliant Pb free

Features

  • High breaking capability by heat-resistant and high-strength ceramic body
  • Reduced effect of external temperature by inner structure designing
  • Prevention of external tension on element by flexible terminals
  • Solderless construction
  • Excellent inrush-withstanding capability and high reliability by wound-wire element
  • Lower resistance compared to similar type fuses by inner structure designing
  • Less susceptible to thermal effects during board mounting by element welded to terminals

Applications

  • DC-DC converter
  • IC tester
  • PLC
  • Actuator
  • Automotive navigation system
  • BMS
  • Motor driver
  • DC secondary circuit
  • ECU
  • OA equipment
  • USB charger
  • Intercom
  • Battery pack
  • Portable device
  • Automotive electronics
  • Multi-function printer
Characteristic

Inrush-withstand

Representative pre-arcing time-current characteristics

Representative pre-arcing time-current characteristics

Blueprint / Size

Blueprint1

Blueprint2

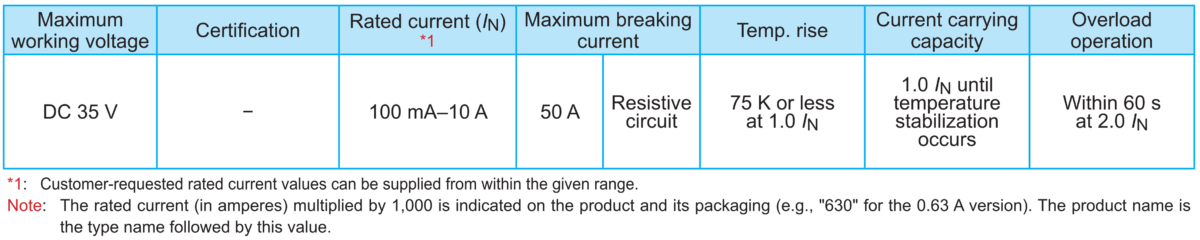

Detailed information

Please contact us if you require specifications outside the scope of those listed above.
