DC450VPT2035
DC450V bolted connection fuse for EV main battery
RoHS-compliant
Pb free
Features
- High breaking capability by heat-resistant and high-strength ceramic body
- High current flow with minimal contact resistance by firmely bolted connection
- Solderless construction
- Excellent ON-OFF durability and high reliability by corrugated plate
- Less susceptible to thermal effects during board mounting by element welded to terminals
Applications
- EV
- PHEV
- Manual service disconnect
- HEV
- FCV
- Battery circuit for motor drive

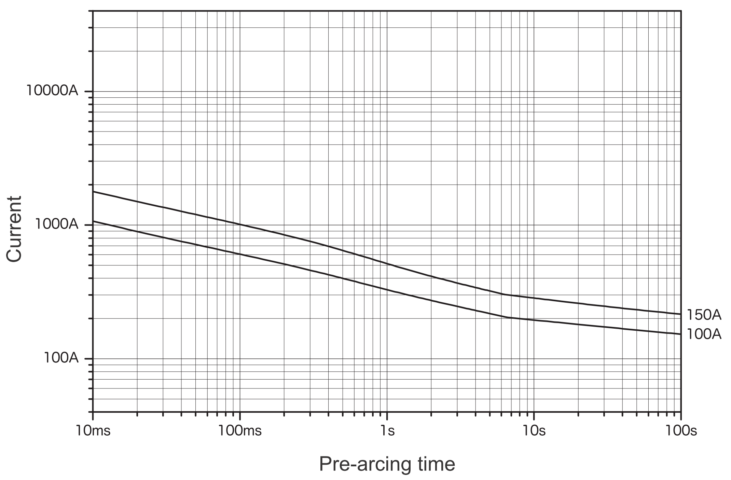

Representative pre-arcing time-current characteristics

Blueprint / Size

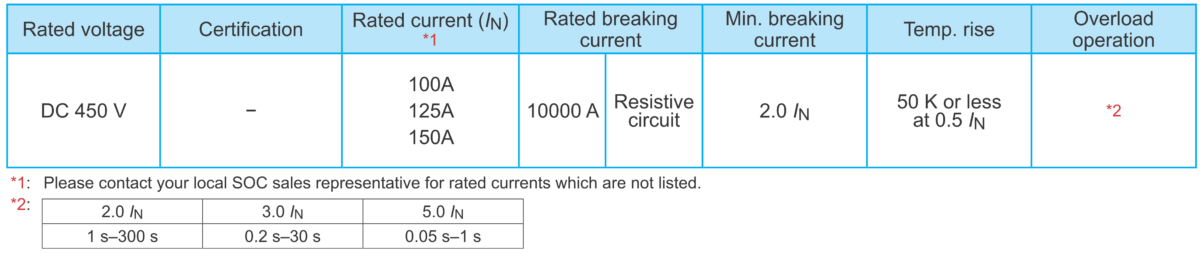

Detailed information
Please contact us if you require specifications outside the scope of those listed above.
