MCF3
Quick-acting surface mount fuse with world's lowest rated current of 28 mA
RoHS-compliant
Pb free
Features
- Reduced effect of external temperature by inner structure designing
- Quick-acting by wire-in-air construction with less heat radiation effect
- Less susceptible to thermal effects during board mounting by element welded to terminals
- 28mA as the lowest rated current for SMD package
- Lower resistance compared to similar type fuses by inner structure designing
- Sealability(IEC60079-11 10.6.2) by mold integrated with terminals
- Solderless construction
Applications
- PLC
- ATEX walkie talkie
- Votex flow meter
- DC secondary circuit
- Hearing aid
- Explosion-proof wireless equipment
- ATEX application
- Pressure transmitter
- Industrial Sensor
- Fuser unit for copier
- Explosion-proof communication equipment
- Intrinsic safety zener barrier
- Characteristic
Quick-acting
Representative pre-arcing time-current characteristics

Blueprint / Size

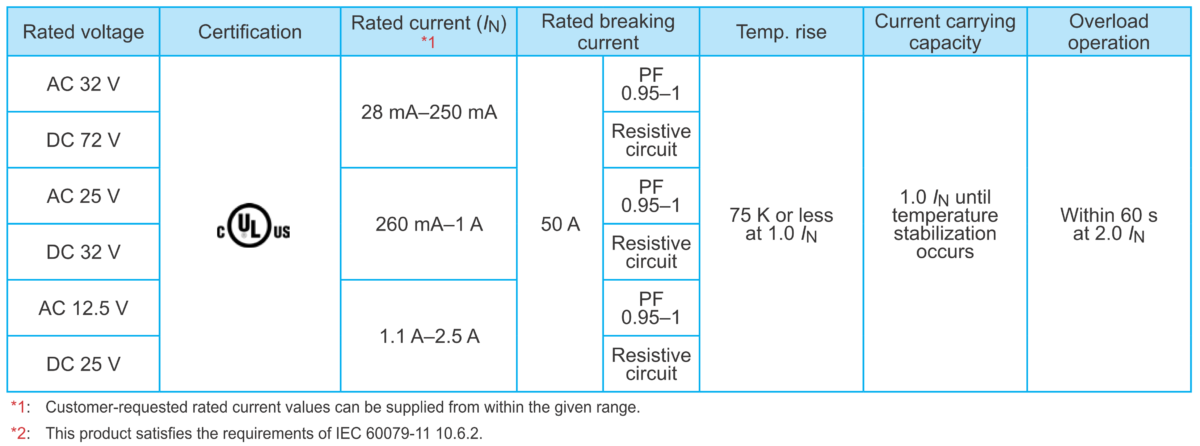

Detailed information
Please contact us if you require specifications outside the scope of those listed above.
