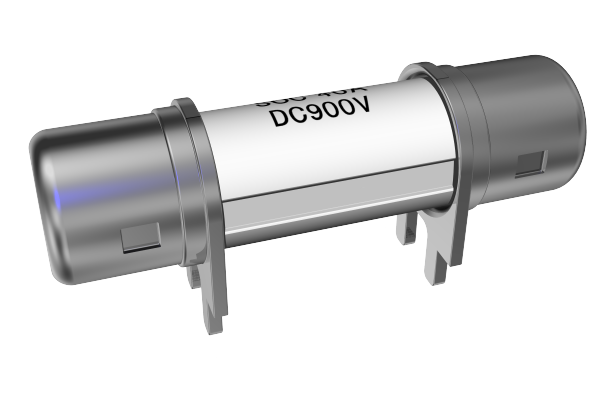

PI1037
DC900V board mount fuse for industrial power supply and EV converter/inverter
RoHS-compliant
Pb free
Features
- High breaking capability by heat-resistant and high-strength ceramic body
- Less susceptible to thermal effects during board mounting by element welded to terminals
- AEC-Q200(Rev.E) qualified
- Treminals capable of directly mounting on PCB
- RoHS compliant
Applications
- EV
- DC/DC converter
- On-board charger
- FCV
- Automotive DC/DC converter
- PHEV
- Servo motor amplifier
- HEV
- Air conditioner
- Automotive Auxiliary equipment

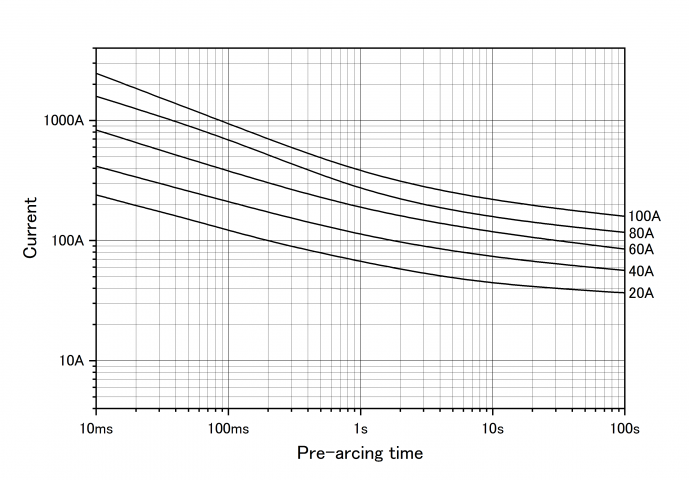

Representative pre-arcing time-current characteristics
Blueprint / Size

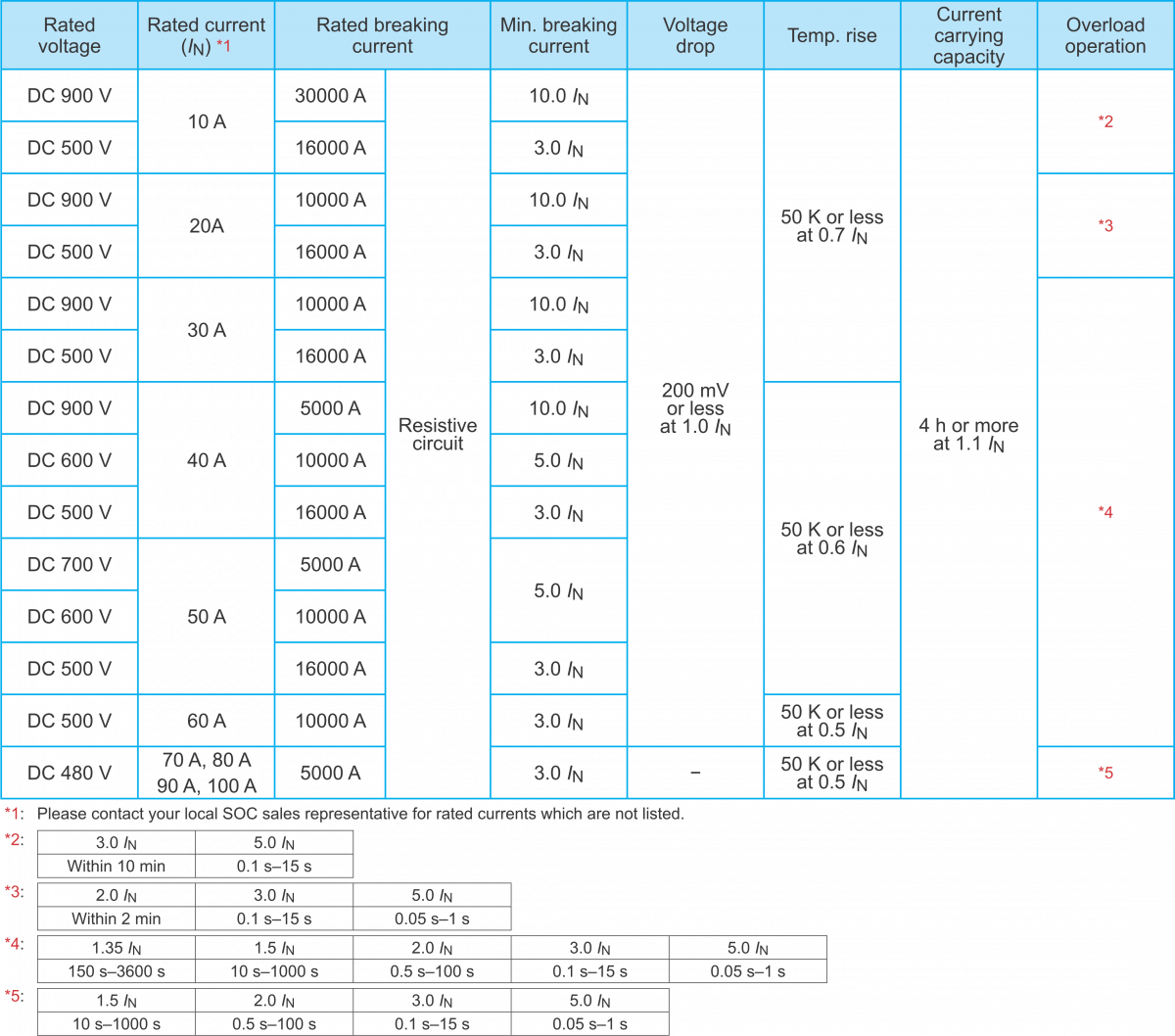

Detailed information
Please contact us if you require specifications outside the scope of those listed above.
