SMC N4

AC250V pin terminal fuse with ceramic body for high reliability

Features

  • High breaking capability by heat-resistant and high-strength ceramic body
  • Reduced effect of external temperature by inner structure designing
  • Treminals capable of directly mounting on PCB
  • Solderless construction
  • Excellent inrush-withstanding capability and high reliability by wound-wire element
  • Lower resistance compared to similar type fuses by inner structure designing
  • Less susceptible to thermal effects during board mounting by element welded to terminals

Applications

  • Ventilator
  • Vacuum pump
  • Consumer electronics
  • Industrial controller
  • Power supply
Characteristic

Inrush-withstand

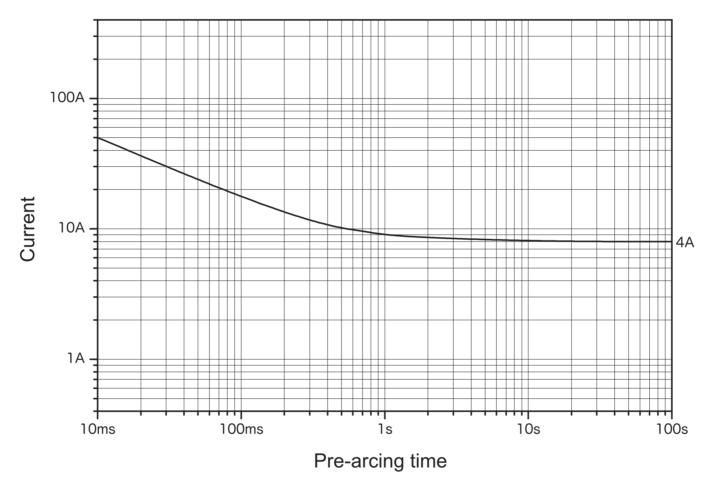

Representative pre-arcing time-current characteristics

Representative pre-arcing time-current characteristics

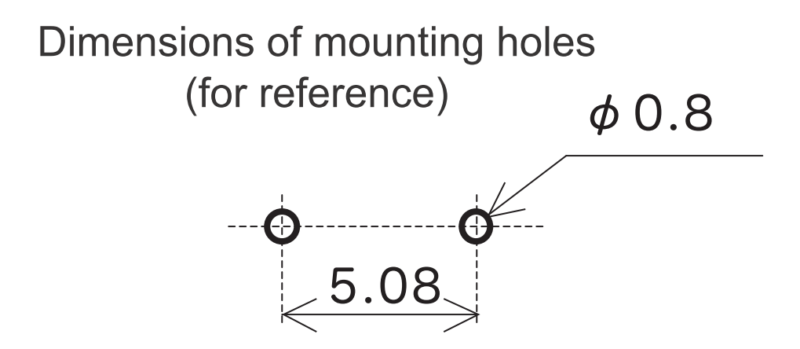

Blueprint / Size

Blueprint1

Blueprint2

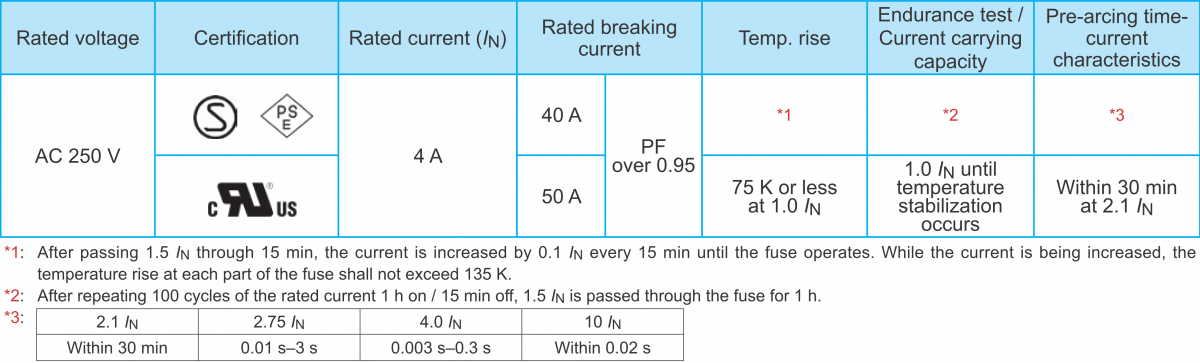

Detailed information

Please contact us if you require specifications outside the scope of those listed above.
