DC500VBC625A
DC500V bolted connection fuse for EV converter/inverter
RoHS-compliant*3
Features
- Excellent inrush-withstanding capability and high reliability by wound-wire element
- High reliability by connecting element and terminals by external soldering
- AEC-Q200(Rev.E)Qualified
- High current flow with minimal contact resistance by surely bolted connection
- RoHS compliant
Applications
- EV
- PHEV
- Servo motor amplifier
- Automotive DC/DC converter
- HVAC circuit
- HEV
- FCV
- EV auxiliary application
- On-board charger

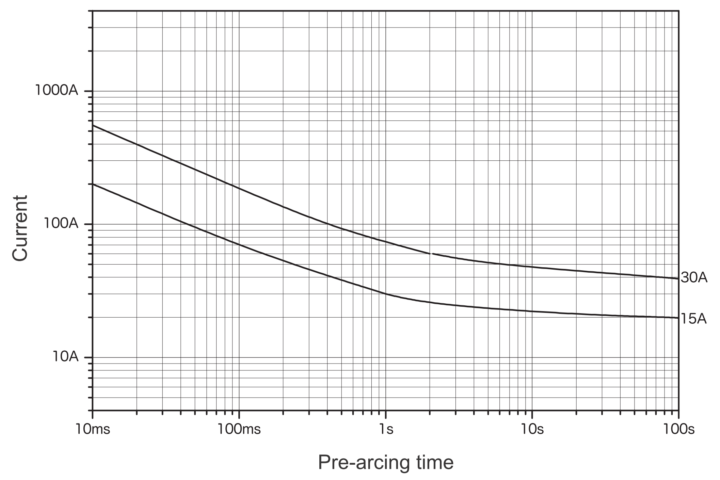

Representative pre-arcing time-current characteristics

Blueprint / Size
Detailed information
Please contact us if you require specifications outside the scope of those listed above.
