PT4065

DC800V/DC500V bolted connection fuse for EV main battery

Features

  • High breaking capability by heat-resistant and high-strength ceramic body
  • High current flow with minimal contact resistance by firmely bolted connection
  • Solderless construction
  • Excellent ON-OFF durability and high reliability by corrugated plate
  • Less susceptible to thermal effects during board mounting by welded elements and terminals
  • DC500V with 20,000A and DC800V with 10,000A breaking capacity

Applications

  • EV
  • PHEV
  • Manual service disconnect
  • HEV
  • FCV
  • Battery circuit for motor drive

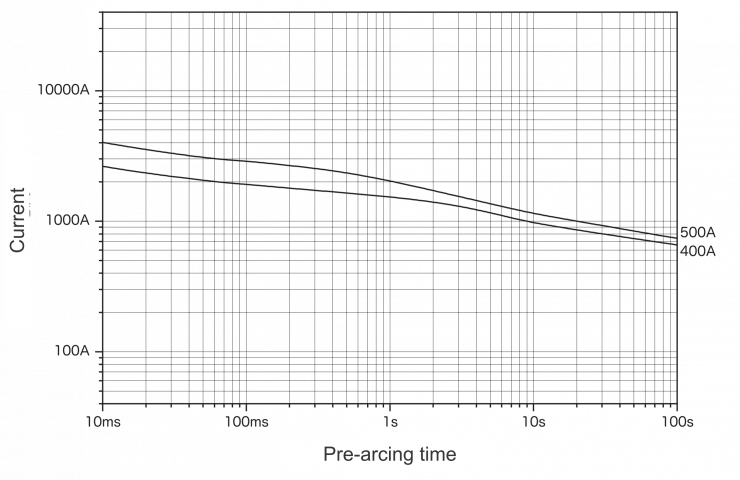

Representative pre-arcing time-current characteristics

Representative pre-arcing time-current characteristics

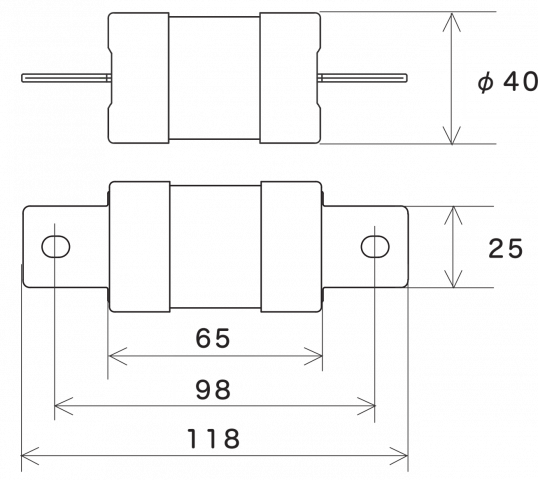

Blueprint / Size

Blueprint1

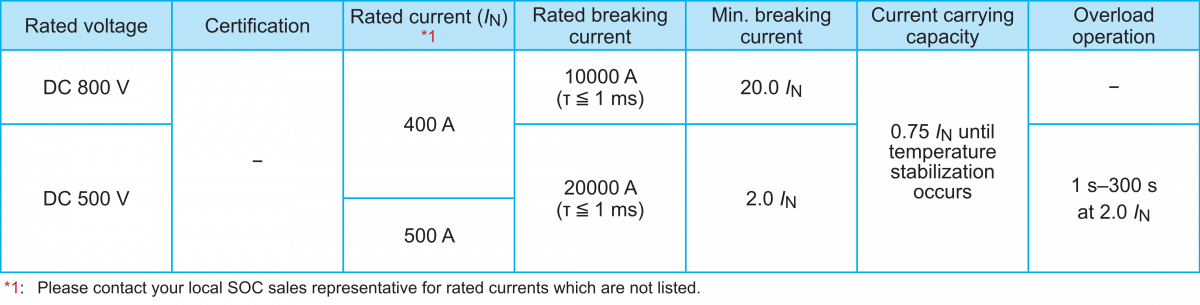

Detailed information

Please contact us if you require specifications outside the scope of those listed above.
